FRANK SOMMER Co. provide a wide range of high quality aeration
products,
replacement membranes and adapters for many diffuser manufacturers to
both, corporate customers and end-users.
All our
EPDM and Silicone diffuser membranes sleeves are Made in Germany.
IBS SOMMER Tube DiffuserHigh
Quality tube diffusers for fine-bubbling aeration suitable for
permanent and intermittent operation in biological waste water
treatment.- High
Quality EPDM
& silicone tube diffusers
- Different
membrane sleeves materials available.
- High
resistance against the biochemical substances of waste water.
- Pre-mounted
membranes on PP-diffuser-bodies, 63 mm diameter, each with 2 stainless
steel clamps.
- Outer diameter 63 mm (90 mm diameters
on request)
- Standard length 500 mm,
750 mm and 1000 mm (other length on request)
- Custom
designed PP diffuser tubes are possible
- High
oxygen transfer due to fine bubble aeration
- Energy
saving due to intermittent aeration and high oxygen input
- Low
maintenance due to perfect design and long lifetime
- No
clogging due to valve effect and flexibility of membrane
- No
corrosion as designed in plastic or stainless steel
- Long
lifetime due to high quality materials
- Spare parts
(tube diffusers, seals, connectors, stainless steel hose
clamps, valves, saddles, pipes in stainless steel and plastic, etc.)
- Replacement
tube membranes and spare parts for self-installation at many lengths
and diameters
Applications- Municipal waste water
treatment plants
- Industrial waste water treatment
plants
- Fish farming
- Drinking water aeration
- Aeration of rivers and lakes
Membrane Sleeve MaterialsDepending
on the application, the wastewater and the preferences of the customer
we offering high quality diffuser tube membranes made of EPDM and
silicone.
IBS SOMMER diffuser membranes
belong to the most advanced membranes for fine bubble aeration in the
world:
- TDM-EPDM-LP
is a high quality EPDM membrane suitable for intermittent operation.
The EPDM mixture is optimized for municipal and industrial waste water
treatment. The content of plasticizer is only 12 % which prevents early
indurations and guarantees long lifetime. The high elastomer content
guarantees excellent chemical resistance to the biochemical substances
in municipal and industrial waste water.
- TDM-SILIC-S
is a high
quality silicone membrane suitable for intermittent operation. The
Membrane is developed for industrial wastewater treatment plants and
municipal wastewater plants with mainly industrial wastewater. Silicone
mixtures are free of plasticizer and guarantee excellent chemical
resistance to the biochemical substances in municipal and industrial
waste water.
- Other diffuser membrane materials
are available on special request!

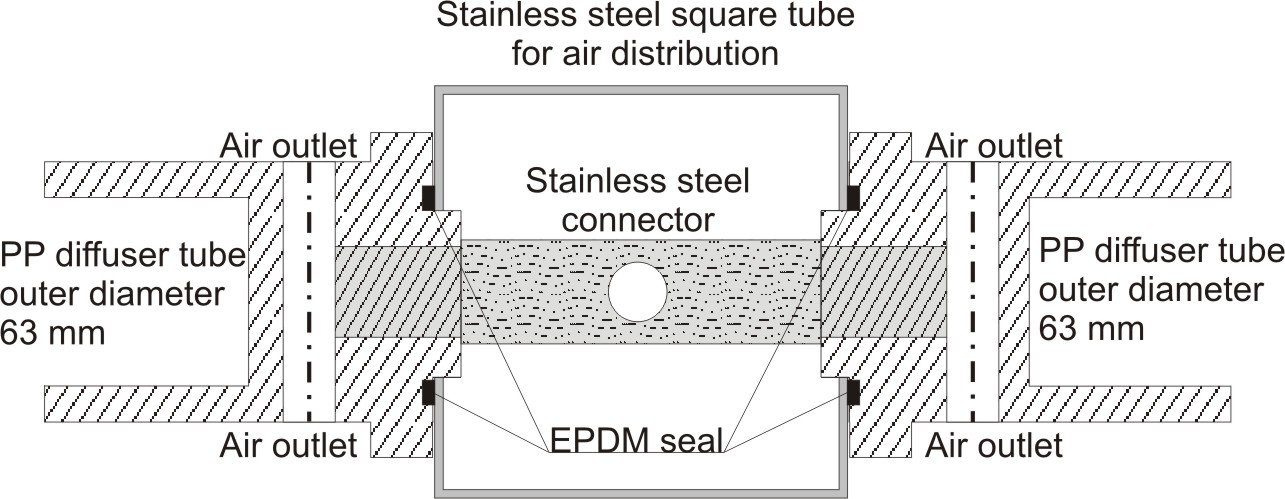

Tube Diffuser InstallationThe
square air distribution pipe is made of stainless steel and has two
holes (Ø 40 mm or 45 mm) at opposite sides. The tube diffuser will be
screwed from both sides on the stainless steel connector till the
connection are tight.
For more details
please refer to our mounting and maintenance instructions!
Adapter
and saddles for round stainless steel and round PVC air pipes
are also available. For round PVC air distribution pipes and basins
with high water flows we suggest to fix the diffuser tubes at the open
end with our diffuser tube end-fixing caps at the floor.
Tube Diffuser working principleThe
air flows through air distribution pipe and connector into the
interspace of supporting tube and the membrane, which is sealed on both
ends by clamps.
The membrane expands by the air
pressure, the micro-perforation opens ,and the air will be released
into the water.
When
the air is shut off, the membrane will pull together, the
micro-perforation closes that no water can enter the air distribution
system.
Services for Aeration projects- Consulting
- Concepts
- Design
- Training
IBS SOMMER pdf-brochures related
to fine bubble aeration:For more
informations please contact IBS FRANK SOMMER Co.
We are
looking forward to your inquiry!
|
|
